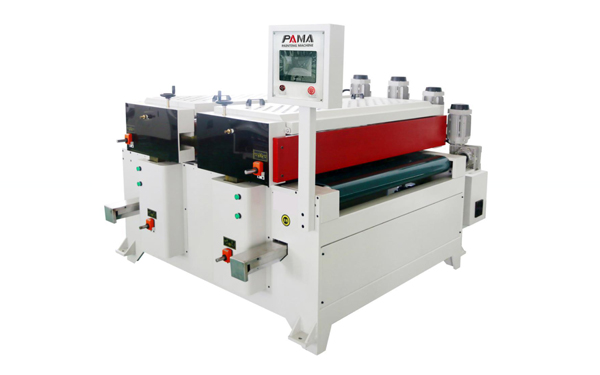

The frame adopts 18mm thick whole plate, two sets of rubber rollers are coated, the rubber roller adopts imported material rubber roller, the diameter is 240mm, and the roller surfaceisprecision processed by CNC. The smooth roller adopts a smooth roller with a diameter of 150mm, the surface of which is chrome-plated, and the outer circle is precisely processed by a CNCgrinder. The rubber roller quick loading and unloading device facilitates the cleaning and replacement of the rubber roller. The operation of the smooth roller and the rubber roller is controlled byanindependent frequency converter and reducer. The distance between themis completedbyadjusting the screw by the worm machine and driving the dovetail mechanism;

Function:  It applies the double application rubber roller and doctor stainless steel roller to cover the liquid paint on the board circularly evenly, without paint waste, and environmentally friendly. It is suitable for fine-coating flat surfaces and some with a simple design or shallow slots.

Application Filed: Furniture, Door, Wardrobe, Cabinet, Flooring, decoration, building material, etc.

Application Board:  MDF, Plywood, Particle Board, wood, veneer, glass, PVC, ceramics, etc.

Application Paint:  UV, Water Based, etc.
